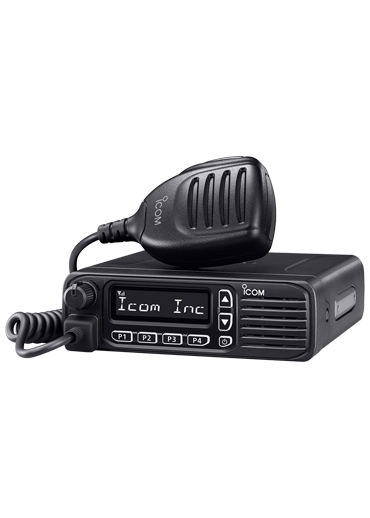

IC-F6130D

Improved Visibility

The IC-F5130D/F6130D series is a simple single-body IDAS™ mobile radio utilizing the latest Icom design platform and improved visibility with a high contrast and wide viewing angle black background LCD.

Flexible External Control with Optional D-Sub Accessory Cable

Connect various external devices using optional D-SUB cables (OPC-1939: 15-pin / OPC-2078: 25-pin) to control PTT, channel selection, horn, ignition switch, dimmer, and more. GPS functionality is also available when an external GPS receiver is connected.

Dual Mode Operation

The IC-F5130D series supports Analog mode, IDAS™ digital multi-site conventional mode, and IDAS™ digital single-site trunking mode. And it is possible to migrate from Analog to Digital in accordance with end-user requirements.

Safe and Secure Functions for Operator

With the IC-F5130D series, it is possible to confirm the safety of the transceiver operator. If there is no transceiver operation, the Lone Worker function sounds an alert and prompts operation. Further more if the operation is still not performed, the transmission can be initiated forcibly to check the sound in the surrounded area and the status of operator. And the Power ON Password, Digital Voice Scrambler etc.. are available in the IC-F5130D series  to protect the confidential communication.​  ​​​​

General Features

•   136–174, 400–520 MHz versions
•   128 Channels / 8 Zones
•   High contrast and wide viewing angle black background LCD
•   Eight character alphanumeric display
•   4 W (typical) front mounted speaker
•   MIL-STD-810 G shock, vibration, temperature and more
•   DTMF autodial memories capability
•   Microphone hanger action programｍable
•   Four programmable buttons
•   GPS position display and Auto-Timed GPS send (External GPS required)
