Ultra Compact Body, Flexible Installation
The compact IC-M330E/GE measures only 156.5 (W) × 66.5 (H) ×110.1 (D) mm making it ideal for a cockpit where space is limited.
Class-D DSC VHF Marine Radio with WLAN Function
IC-M510E Evo
- Radio Control & Intercom via your Smart Device
- Integrated AIS Receiver
- Simplified Navigation Function
- Integrated AIS Receiver
- Simplified Navigation Function
Intuitive User Interface
A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.
New Speaker Delivers Dynamic, Clear Audio
A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range.
GPS Receiver Built-in (IC-M330GE)
A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.
And More
• Active Noise Canceling
• NMEA 0183/HS connectivity, NMEA 2000™ (CT-M500 required)
• Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1 m depth of water for 60 minutes)
• Automatic Foghorn function (CT-M500 required)
• Voice Scrambler with optional UT-112A
• AquaQuake™ prevents audio degradation from a water-logged speaker
• Supplied speaker-microphone, HM-205RB can be connected to the rear panel
• External speaker connection
• Controlled with COMMANDMIC™ HM-195 or HM-229 series
• Supports 4-digit channels
| Frequency Range | Tx: 156.025–161.425MHz, Rx: 156.300–161.925MHz, DSC: 156.525MHz, AIS: 162.025MHz |
| Number of Channels | International marine channels |
| Operating Temperature Range | –20°C to +60°C |
| Dimensions | 175 x 110 x 71mm (approx.) |
| Weight | 750g / 1.7 lb (approx.) |
| RF Output Power | Hi: 25W, Low: 1W |
| Receiver Sensitivity | –5 dBμ emf typ. (20 dB SINAD) –3 dBμ emf typ. (1% BER) |
| Audio Output Power | 15 W typ. with a 4 Ω external speaker |
| Water & Dust Protection | IP68 (dustproof and watertight) |
| Durability Standard | MIL-STD 810G |
 | HM-205RB Speaker microphone |
 | HM-195GB Commandmic - Secondary remote control microphone (Black) |
 | UX-241 GNSS Antenna |
| | HM-195GW Commandmic - Secondary remote control microphone (White) |
 | SP-37 Horn Speaker |
 | MBF-7 Flush Mount Kit (for consoles with less than 25mm thickness) |
 | OPC-1541 Commandmic 6.1m (20ft) extension cable. Up to two cables available. |
 | OPC-2523L L-type conversion cable connects between HM-195 CommandMic™ and transceiver. (10pin - 10pin) |

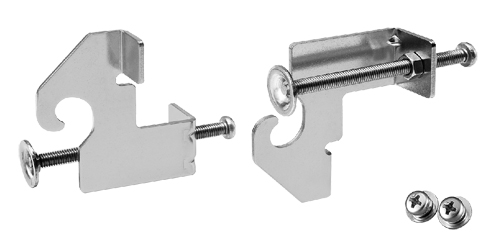

 | MBF-9 Flush Mount Kit (for consoles with less than 35mm thickness) |

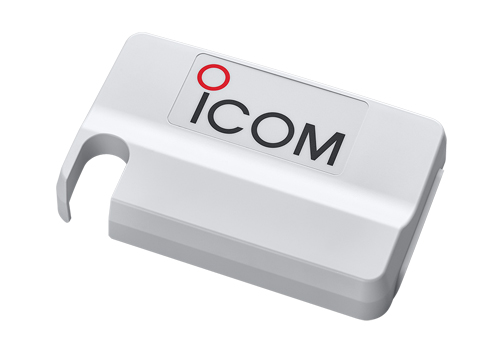

 | MBZ-1 Front panel cover for sunlight protection. |

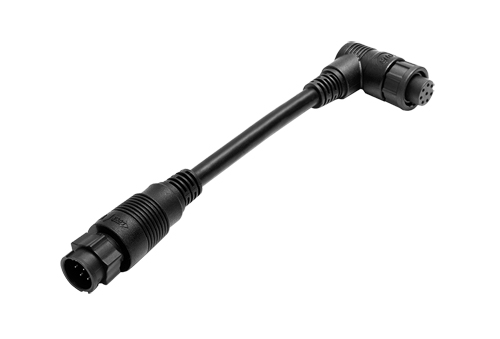

 | OPC-2522L L-type conversion cable connects between HM-205RB and transceiver. (8pin - 8pin) |
